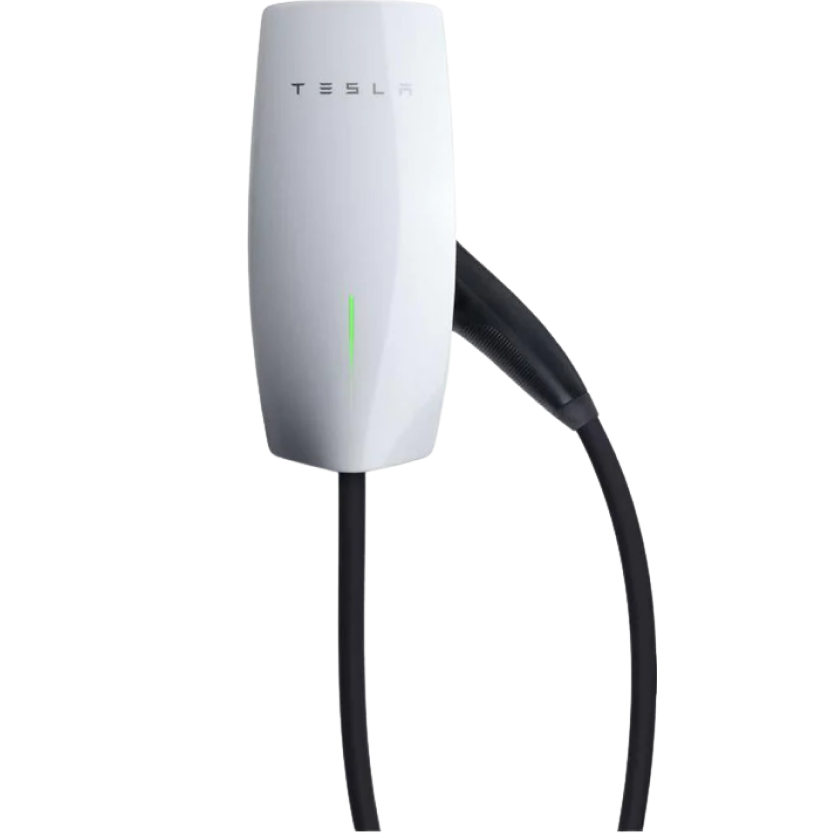

Tesla Gen 3 Wall Connector

The Gen 3 Wall Connector, designed and manufactured by Tesla, currently ranks #77 on the Monta supported hardware list. The inclusion of Type2 connector(s), along with a maximum power output of 22 kW and AC charging capabilities, make the Gen 3 Wall Connector worth considering as a viable option to meet your requirements.

Circle icon
AC
Current type
charger in circle icon
22 kW
Max power
Tesla - Gen 3 Wall Connector

Tesla Gen 3 Wall Connector specifications

Full name
Tesla - Gen 3 Wall Connector
Manufacturer
Tesla
Supported power
11.0 / 22.0 / 7.0
Type
AC
Number of connectors
1
Connector type(s)
Type2
Identifier
tesla_wall_connector_3
Tesla - Gen 3 Wall Connector  datasheet

Monta features with Tesla Gen 3 Wall Connector

Get access to unique features when integrating your charger to the Monta platform.
hardware easee
  • Checkmark Native Qr Serial
    QR code sticker that contains serial number for PbM integration flow.
  • Checkmark Auto Start
    Charge point starts charging after cable is plugged into the vehicle.
  • Checkmark Auto Schedules
    Schedules a SmartCharge after detecting a cable being plugged in.
  • Cross Lock Cable
    Locks the charging cable in the charge point after the transaction is done.
  • Cross Load Balancing
    Distributes the power among multiple charge points with limited power supply.
  • Cross Firmware Management
    Firmware updates remotely.
  • Cross Eichrecht
    Eichrecht compliance required for validating transactions. (Germany only)
  • Cross Local Auth List Management
    Locally authorize charges if a charge point is offline.
  • Cross Powerbank
    PowerBank is supported on this charge point
  • Cross Solar Charge
    Supports Virtual SolarCharge and can limit charging current to the power output from solar panels.
  • Cross Auto Charge
    Charge point support the plug & charge lite experience through the auto charge standard
  • Cross Release Detection
    The charge point supports reliable detection of connector unplug.
  • Cross Pricing Display
    Charge point has pricing display that can receive arbitrary default or user price texts.
  • Cross Display Qr Code
    Charge point supports displaying a QR on the display
  • Cross Iso 15118 2 Plug And Charge
    Charge point supports authorizing vehicles using ISO 15118:2 Plug&Charge via Contract Certificates.
  • Cross Iso 15118 20 Plug And Charge
    Charge point supports authorizing vehicles using ISO 15118:20 Plug&Charge via Contract Certificates.

    • Tesla Gen 3 Wall Connector performance and user ratings

    Monta is committed to complete transparency through real-world charging and usage statistics. We evaluate all charge points in our network on a set of important criteria: uptime, charge success, user satisfaction, and overall performance score. These play into their overall ranking on our supported charge points list.
    Performance score
    79%
    Charge success rate
    86%
    User satisfaction rate
    N/A
    Uptime rate
    98%
    Ratings for Tesla - Gen 3 Wall Connector based on Monta’s usage data

    Performance score

    A charge point model’s overall performance score is calculated once a day by combining its uptime, charge success, and user satisfaction rates.
    The model with the highest 30-day rolling average is ranked first on our supported charge points list. The lower the rolling average, the further down the list it ranks.
    Tesla Gen 3 Wall Connector scores 79% for overall performance

    Charge success rate

    Once a driver starts charging their vehicle, we can track the Charge Success Rate. This is the percentage of sessions that result in a successful energy transfer to a vehicle. In other words, it shows how reliable a specific charge point model is, which is critical for drivers, charge point operators, and manufacturers alike.
    Tesla Gen 3 Wall Connector scores 86% for charge success

    User satisfaction rate

    User reviews have a major impact on a brand. EV drivers can report their satisfaction and provide direct feedback in the Monta platform about their latest charge session. Based on a scale of 1 to 5 and then converted to a percentage, the User Satisfaction Rate is the average rating on a charge point model.

    This data is available in Monta’s Hardware Portal for charge point operators and hardware manufacturers. We explain the user satisfaction scale in more detail in our Help Center.
    Tesla Gen 3 Wall Connector user satisfaction rate is not available

    Uptime rate

    Few things are more important to an EV driver than arriving at a charge point and feeling confident that it will work. A charge point’s Uptime Rate tells drivers and hardware manufacturers alike how often a specific model is available for service. And with more regulatory bodies requiring that we report hardware uptime, this is an essential measure.

    To give you the most accurate data, we look at all instances of a charge point model and have defined when we start and stop measuring uptime.
    Tesla Gen 3 Wall Connector scores 98% for uptime
