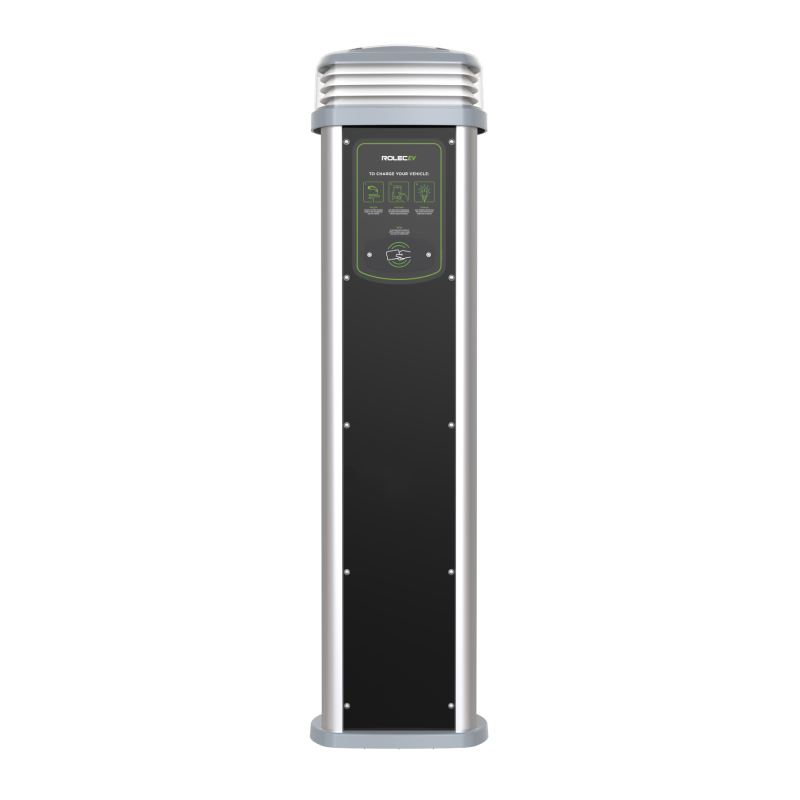

Rolec Quantum Dual

The Quantum Dual, designed and manufactured by Rolec, currently ranks #15 on the Monta supported hardware list. The inclusion of Type2 connector(s), along with a maximum power output of 22 kW and AC charging capabilities, make the Quantum Dual worth considering as a viable option to meet your requirements.

Circle icon
AC
Current type
charger in circle icon
22 kW
Max power
meter class
ClassB
Meter class
Rolec - Quantum Dual

Rolec Quantum Dual specifications

Full name
Rolec - Quantum Dual
Manufacturer
Rolec
Supported power
7.4 / 22.0
Global meter
Yes
Current type
AC
Meter class
ClassB
Number of connectors
2
Connector type(s)
Type2
Identifier
rolec_quantum_ev_dual
Rolec - Quantum Dual  datasheet

Monta features with Rolec Quantum Dual

Get access to unique features when integrating your charger to the Monta platform.
hardware easee
  • Checkmark AutoStart
    Charge point starts charging after cable is plugged into the vehicle.
  • Checkmark AutoSmartCharge
    Schedules a SmartCharge after detecting a cable being plugged in.
  • Cross Release Detection
    The charge point supports reliable detection of connector unplug
  • Checkmark Powerbank
    Gives you the ability to support the electricity grid and prevent power imbalances, and earn Monta credits for participating in return. For the charge point to be compatible, it needs to be able to send fast and precise power updates to Monta, and all manufacturers need to do is detailed here.
  • Checkmark Local Auth List Management
    Locally authorize charges if a charge point is offline.
  • Cross Auto Charge
    This feature allows users to automatically charge on public DC chargers without any interaction with an RFID card or phone app.
  • Checkmark SolarCharge
    Supports Virtual SolarCharge and can match charging current to power output from solar panels.
  • Cross California Pricing
    Charge point has pricing display that can receive arbitrary default or user price texts.
  • Cross Eichrecht
    Eichrecht compliance required for validating transactions. (Germany only).
  • Checkmark Load Balancing
    Distributes the power among multiple charge points with limited power supply.
  • Checkmark Remote Firmware Updates
    Charger firmware can be updated remotely.
  • Checkmark Cable Lock
    Locks the charging cable in the charger after the transaction is done.
  • Cross Scan Qr For Serial
    QR code sticker that contains a serial number for PbM (Powered by Monta) integration flow.
  • Cross Display Qr Code
    Charge point supports displaying a QR on the display.
  • Cross Diagnostics
    Charge point sends a hardware diagnostics log file to a specified FTP server. The diagnostics log file can be used to troubleshoot hardware and firmware errors and performance.
  • Cross Plug&Charge
    Supports Plug&Charge for authorising and paying for a charge session

Rolec Quantum Dual usage and performance overview

Monta is committed to offering complete transparency by providing real-world charging and usage statistics. We evaluate all chargers in our network on a set of important criteria, including popularity, stability, and user rating.
Popularity
100%
Stability
73%
User rating
80%
Ratings for Rolec - Quantum Dual based on Monta’s usage data

Popularity

The popularity of a charger among EV drivers is a good indicator of its quality and reliability. Therefore, assessing a charger's demand among EV users can provide insight into its reputation and performance.
We calculate the score based on the amount of chargers of the same model compared to the number of units of other models, and the score is weighted based on current type and the number of installations for that particular model in last 14 days. For popularity, Rolec Quantum Dual scored 100%.

Charging stability

Charging stability is crucial for an optimal EV charging experience. When a charger doesn't perform as expected, it negatively impacts the entire charging experience. We calculate the failed against successful charges across the selected model and mix it with the time the charge point was available or charging, and compare it against disconnected chargers, or chargers in error state.
Given its importance, we assign more weight to this metric in our algorithm for calculating the final score. As a result, charging stability is a significant ranking factor for classifying chargers in our supported hardware list. Rolec Quantum Dual scored 73% for charging stability.

User rating

Monta users can rate and leave reviews for the charge point models that were used on the Monta platform. If a user owns or uses a public charge point, they can share their experiences and thoughts about the performance of that charge point. User rating is calculated as a % vs highest in the market.
For this metric, the Quantum Dual model scored 80%.

Resources

Need to integrate a Rolec Quantum Dual charger with Monta?
